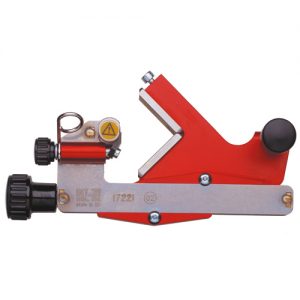

Semi-Conductor Strippers

Cable and Conductor Preparation – Semi-Conductor Strippers

Part number: TM10223
Category:

Product Enquiry

Description

For Bonded Semi-Conductor

Used to remove a vulcanised semi-conductive screen up to 1.5 mm thick for 10-52 mm medium and high voltage cables.

Features

  • Anodised Aluminium construction provides an extremly light and robust tool
  • Contact surfaces are coated to provide low frictional resistance
  • The change-over lever allows activation/de-activation of axial movement
  • Removal of the screen can start or stop at any point required
  • Axial movement in both direction possible
  • The shape of the blade ensures that the end of the screen layer will always be conical
  • Blade of tempered steel
  • Cutting depth using special blade with stripping depth with 17° cone from 0 to 1.5 mm adjustable
  • Cutting depth can be limited or blocked
  • Very small rotation diameter of 220 mm max
  • Shaved screen deflected away using the guiding device on the tool.
