Pole and Line Hardware – Insulator and Support Fittings – Ball Clevis. Insulator and Support Fittings – Ball Hook Short Shank. Insulator and Support Fittings – Bow Shackle. Insulator and Support Fittings – Clevis Thimble. Insulator and Support Fittings – Clevis Tongue. Socket-type screw anchor. High Strength helix with special shaped tip for wobble-free drilling. 16B socket design. Fitted with a 16 mm W clip, of 304 stainless steel. Designed for 273 mm OD and 323 mm OD poles. Insulator and Support Fittings – Thimble Eye Nut.

Part number: Pole & Line Materials
Category:

Product Enquiry

Description

Galvanising

The thickness of the galvanizing for each batch is carefully monitored and an additional passivization process improves the life of the coating especially is coastal areas.

Forged Steel or Investment Castings (Lost Wax)

Products are made of forged steel or from steel castings using the investment casting process. Steel offers more consistent and uniform properties with much higher impact strength and ductility than sand cast SG Iron.

Testing

All products are:
  • Batch-tested prior to further processing
  • 100% proof-tested prior to release
  • Type test reports are also available

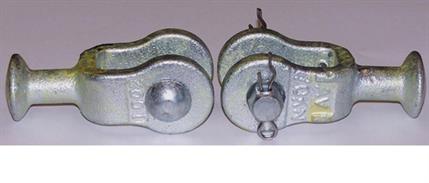

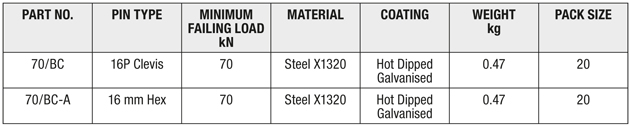

BALL CLEVIS

BALL HOOK SHORT SHANK

 BOW SHACKLE

No resources for this product
