Multisafe TT 36kV – Telescopic Voltage Tester

The MultiSafe TT 36kV is a telescopic voltage tester for fast voltage testing on railway overhead lines and outdoor switchgear. Molded protective resistors directly behind the test electrode and the integrated self-test offer maximum safety. The MultiSafe turns on / off automatically and is very easy to use.

Part number: Multisafe TT 36kV Telescopic Voltage Detector
Category:

Product Enquiry

Description

The MultiSafe TT36kV is a telescopic voltage tester for voltages up to 36,000 V AC/DC. It is particularly suitable to detect voltage quickly and securely at catenary lines of rail systems. The voltage tester consists of a telescopic tube with test electrode to be connected to the overhead line, with an option of a contact magnet, rail foot clamp or a universal clamp  for the grounded rail. Molded protective resistors directly behind the test electrode and the integrated self-test offer maximum safety. The MultiSafe turns on / off automatically and is very easy to use.

Voltage tester:

  • Precise display of the voltage 50 V up to 36,000 V AC / DC
  • Response voltage Ut  1200 V (other response voltages from 50 V on request)

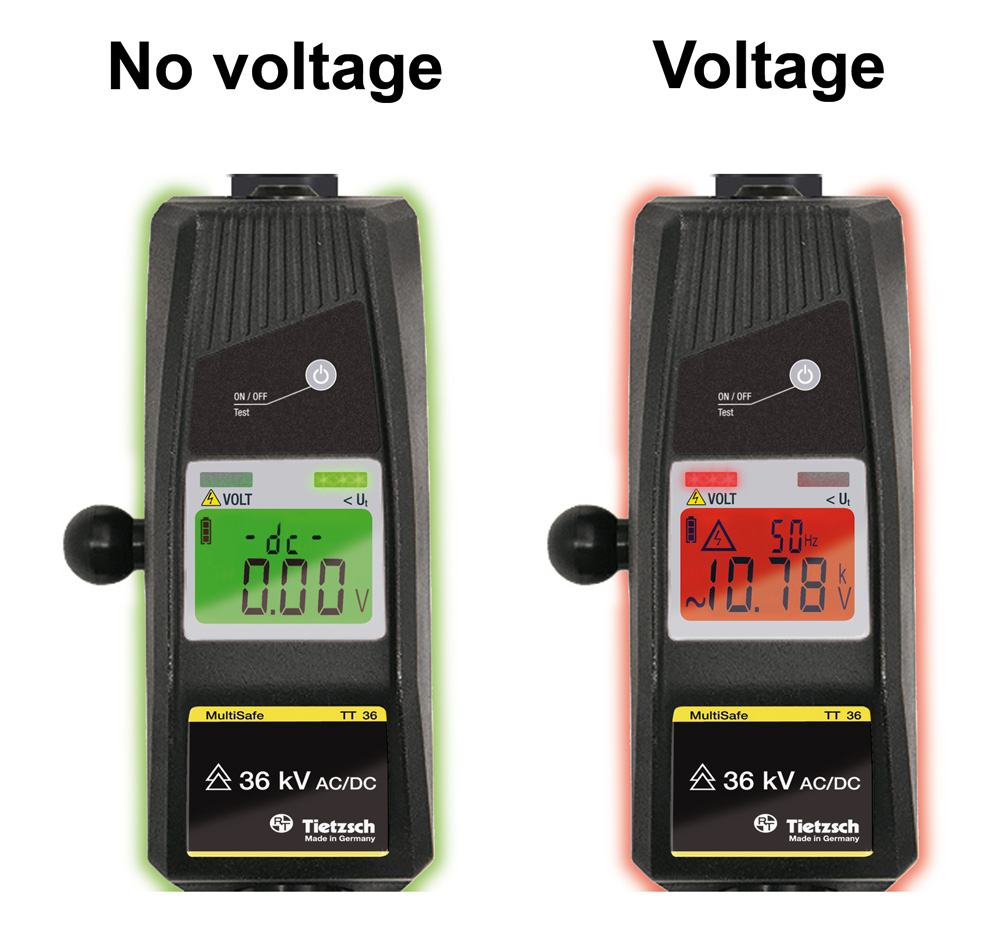

  • Large two-color illuminated display (red / green), for a clear warning of dangerous voltages
  • Clear LED indicator for dangerous voltage
  • 360° illuminated band lights up (red / green) in all directions
  • Acoustic warning of dangerous voltage

Safety:

  • Integrated self-test for quick checking of the protective resistors, connecting cable, display and electronics
  • Surge voltage strength >100 kV
  • Highest degree of safety provided by molded protective resistors

More functions:

  • Telescope system for easy and quick testing
  • Variable test height up to 10 meters
  • For indoor and outdoor use
  • Various test electrodes for testing on overhead lines and busbars
  • Easy operation with just one button
  • Robust housing
  • IP 65 – waterproof
